Dynair AXC – LINE METAL Round duct centrifugal in-line fans

The AXC LINE-METAL are a series of centrifugal in-line fans, with the advantage of conveying air along the axis of the impeller, typical of axial fans. This feature, the limited dimensions and standardized inlet and outlet sizes grant a particular ease of installation. The low noise level and high air pressure make these fans ideal for idustrial use as well as residential applications. They can be installed in any point along the duct, or at the end of duct in either intake or exhaust direction. These fans can convey clean air with temperatures ranging from -10°C to +60°C.

Airflow: up to 2 100 m3/h
Max pressure rise: 960 Pa
Max operating temperature: 70 °C

This product complies with the European Union’s ecodesign directive.
ErP Directive compliant fans

CATALOGUE

ACCESSORIES

Construction:

  • Casing made from steel sheet, protected against atmospheric agents by epoxy paint.
  • Single-phase electric ball-bearing motor, particularly suitable for speed regulation, with non-self-resetting thermal cut-out.
  • Backward curved centrifugal impeller with high efficiency and low noise level. Statically and dynamically balanced according to the ISO 1940  standard.
  • Downstream guide vanes for improved efficiency.
  • External electric connections enclosed in a box made out of self-extuingishing technopolymer, with IP54 protection.
  • The fan is complaint with the following international standards: EN 60335-2-80, B.T. 2006/95/CE, EMC 2004/108/CE.

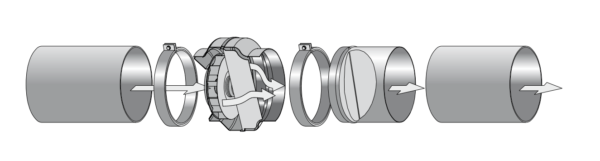

Accessories:

  • Speed regulators
  • Backdraught shutters
  • Support brackets
  • Protection guard
  • Collars for connecting the fan to a duct
  • Silencers.

For further details, feel free to contact KOMPEL Kft.
