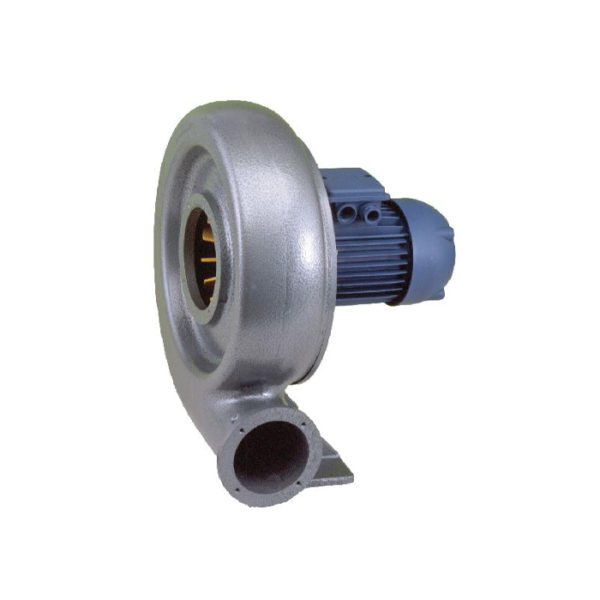

Dynair F aluminium centrifugal fans

The F series of centrifugal fans are designed to convey air in industrial applications, between -20˘C and +80°C, where small air volumes and high pressures are required. The radial impeller is fitted directly onto the motor. The die-cast aluminium impeller and volute casing provide a very low noise level, thanks to the thickness of their materials. Available in 4 different sizes.

Airflow: up to 1 250 m3/h
Max pressure rise: 2 240 Pa
Max operating temperature: 80 °C

This product complies with the European Union’s ecodesign directive.
ErP Directive compliant fans

CATALOGUE

Categories: ,

Construction:

  • Die cast aluminium volute casing, protected by epoxy paint, with support feet built into the casing.
  • Single inlet, open blade, die cast aluminium impeller, coupled directly to the motor.
  • Fixed discharge orientation; RD 270°.
  • Single-, or three-phase asynchronous motors, with IP55 grade protection and class F insulation, CE marked, compliant with the following international standards: IEC 60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE.  Suitable for continuous „S1” service at constant load.

Accessories:

  • Inlet and outlet protection guards, manufactured according to UNI 12499 standards, protected against atmospheric agents.

For further details, feel free to contact KOMPEL Kft.
