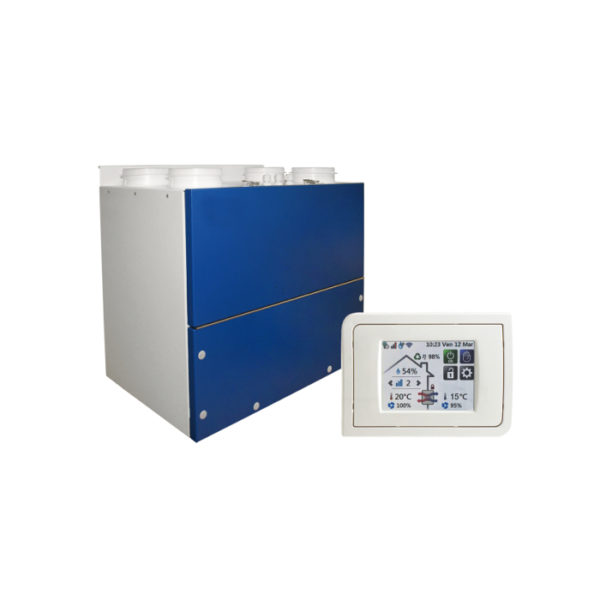

Dynair REC 320 TC Centralized HRU with control Touch Panel – Vertical Installation

Construction

  • Casing made in galvanized steel sheet with epoxy finish
  • Internal panels in PPE for a perfect thermal and acoustic insulation.
  • Integrated filter system class G4.

Accessories

Wide range of accessorie : consult the catalogue.

CATALOGUE

REC 320 TC is a centralized heat recovery unit with thermal efficiency up to 93% provided with a remote Touch Panel controller for the weekly programming of the ventilation modalities.

Ideal for houses up to 10 rooms. Installation configuration: 5 intake points and 5 extract points.
They are suitable for vertical installation and for ø 125 mm ducting system.
All units are provided with EC motors and integrated by-pass.

The panel allows to manually or automatically manage (through the weekly programming) the following functions:

  • The Speed/ventilation level regulation
  • The ventilation modality (by-pass function, freecooling, only extraction, only immission)
  • The threshold humidity level over which the unit increases its speed
  • The post-ventilation function (Timer function, adjustable from 0 to 30 minutes) to delay the switching of the unit at the minimum speed)
  • The Sleep modality that allow to have the unit running silently at low speed during the night
