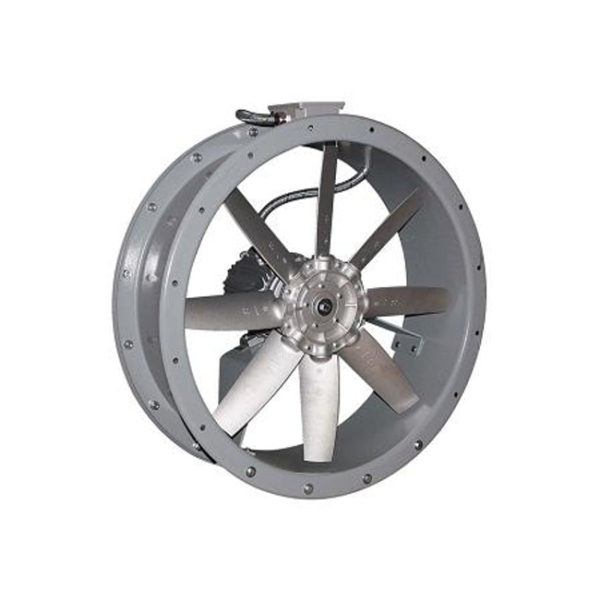

Dynair CC-SHT Hő- és füstelszívó axiálventilátor F300/120 – F400

A CC-SHT füstelszívó axiálventilátorok tűzszakaszon belüli elhelyezésre is megfelelőek. A ház időjárásálló porszórt bevonatának köszönhetően (és az IP 55 védettségű motornak) kültérben is lehelyezhető (pl. tetőn). 310-től 1000 mm átmérőig áll a rendelkezésünkre, többféle fordulatszámmal. Ha CO-elszívó, vagy alapszellőztető funkciója is van, úgy szállítható kétfordulatú motorral, vagy frekvenciaváltható motorral.

Jelenleg az egyik leginkább költséghatékony megoldás füstelszívásra, amennyiben nagy nyomásemelésre nincs szükség.

Átmérők 310 – 1 000 mm.
Légszállítás 75 000 m3/h -ig.
Max. össznyomásnövekedés 550 Pa.
Folyamatos üzemben megengedett maximális közeghőmérséklet 70 °C.

Működőképesség:

400°C/2 óra (F400), vagy

300°C/2 óra (F300/120).

2-pólusú motorral csak az F300/120 választható.

KATALÓGUS

Kategória:

A CC SHT nagy hatékonyságú axiális ventilátor sorozat, amely a magas hőmérsékletű füstelvezetéshez van tervezve.

A CC SHT ventilátorok kifejezetten a teljesítményértékeléshez megfelelő szabványos méretekben vannak méretezve.
A sorozat alkalmas +60°C-os működésre és az EN 12101-3 szerinti CE tanúsítvánnyal rendelkező F300, F400 (kivéve 2 pólusú változatok, tanúsított F300/120), és garantált 300°C-on 2 órát a független bejelentett szervezet Applus szerint.

Kérésre:

  • Külső vezérlőboboz magas hőmérséklettűrő, összeszerelve.
TYPE GENERAL
DESCRIPTION		 ADDITIONAL INFORMATION SPEED VARIOUS kW GROUP CODE ARTICLE
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3000 CC-SHT 314 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3001 CC-SHT 312 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3002 CC-SHT 354 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3003 CC-SHT 352 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3004 CC-SHT 404 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3005 CC-SHT 402 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3006 CC-SHT 454 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3007 CC-SHT 452 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3010 CC-SHT 504C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3009 CC-SHT 504B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3008 CC-SHT 504A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3013 CC-SHT 506C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3012 CC-SHT 506B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3011 CC-SHT 506A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3016 CC-SHT 564C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3015 CC-SHT 564B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3014 CC-SHT 564A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3019 CC-SHT 566C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3018 CC-SHT 566B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3017 CC-SHT 566A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3022 CC-SHT 634C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3021 CC-SHT 634B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3020 CC-SHT 634A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3025 CC-SHT 636C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3024 CC-SHT 636B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3023 CC-SHT 636A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3028 CC-SHT 714C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3027 CC-SHT 714B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3026 CC-SHT 714A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,37 CC-SHT 1CS3031 CC-SHT 716C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,55 CC-SHT 1CS3030 CC-SHT 716B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3029 CC-SHT 716A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3034 CC-SHT 804C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 4 CC-SHT 1CS3033 CC-SHT 804B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 5,5 CC-SHT 1CS3032 CC-SHT 804A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3037 CC-SHT 806C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3036 CC-SHT 806B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3035 CC-SHT 806A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3040 CC-SHT 804C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3039 CC-SHT 804B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 4 CC-SHT 1CS3038 CC-SHT 804A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3043 CC-SHT 806C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3042 CC-SHT 806B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3041 CC-SHT 806A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 5,5 CC-SHT 1CS3046 CC-SHT 904C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 7,5 CC-SHT 1CS3045 CC-SHT 904B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 11 CC-SHT 1CS3044 CC-SHT 904A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3049 CC-SHT 906C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3048 CC-SHT 906B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3047 CC-SHT 906A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3052 CC-SHT 904C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 4 CC-SHT 1CS3051 CC-SHT 904B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 5,5 CC-SHT 1CS3050 CC-SHT 904A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 0,75 CC-SHT 1CS3055 CC-SHT 906C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3054 CC-SHT 906B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3053 CC-SHT 906A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 7,5 CC-SHT 1CS3058 CC-SHT 1004C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 11 CC-SHT 1CS3057 CC-SHT 1004B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 15 CC-SHT 1CS3056 CC-SHT 1004A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 3 CC-SHT 1CS3061 CC-SHT 1006C T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 4 CC-SHT 1CS3060 CC-SHT 1006B T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 5,5 CC-SHT 1CS3059 CC-SHT 1006A T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 4 CC-SHT 1CS3064 CC-SHT 1004C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 5,5 CC-SHT 1CS3063 CC-SHT 1004B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 7,5 CC-SHT 1CS3062 CC-SHT 1004A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,1 CC-SHT 1CS3067 CC-SHT 1006C 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 1,5 CC-SHT 1CS3066 CC-SHT 1006B 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F300/2h 2,2 CC-SHT 1CS3065 CC-SHT 1006A 5/10 T F300
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4000 CC-SHT 314 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4001 CC-SHT 354 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4002 CC-SHT 404 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4003 CC-SHT 454 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4006 CC-SHT 504C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4005 CC-SHT 504B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4004 CC-SHT 504A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4009 CC-SHT 506C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4008 CC-SHT 506B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4007 CC-SHT 506A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4012 CC-SHT 564C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4011 CC-SHT 564B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4010 CC-SHT 564A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4015 CC-SHT 566C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4014 CC-SHT 566B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4013 CC-SHT 566A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4018 CC-SHT 634C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4017 CC-SHT 634B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 2,2 CC-SHT 1CS4016 CC-SHT 634A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4021 CC-SHT 636C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4020 CC-SHT 636B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4019 CC-SHT 636A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4024 CC-SHT 714C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 2,2 CC-SHT 1CS4023 CC-SHT 714B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4022 CC-SHT 714A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,37 CC-SHT 1CS4027 CC-SHT 716C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4026 CC-SHT 716B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4025 CC-SHT 716A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4030 CC-SHT 804C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 4 CC-SHT 1CS4029 CC-SHT 804B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 5,5 CC-SHT 1CS4028 CC-SHT 804A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4033 CC-SHT 806C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4032 CC-SHT 806B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4031 CC-SHT 806A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 2,2 CC-SHT 1CS4036 CC-SHT 804C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4035 CC-SHT 804B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 4 CC-SHT 1CS4034 CC-SHT 804A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,55 CC-SHT 1CS4039 CC-SHT 806C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4038 CC-SHT 806B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4037 CC-SHT 806A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 5,5 CC-SHT 1CS4042 CC-SHT 904C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 7,5 CC-SHT 1CS4041 CC-SHT 904B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 11 CC-SHT 1CS4040 CC-SHT 904A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4045 CC-SHT 906C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 2,2 CC-SHT 1CS4044 CC-SHT 906B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4043 CC-SHT 906A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4048 CC-SHT 904C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 4 CC-SHT 1CS4047 CC-SHT 904B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 5,5 CC-SHT 1CS4046 CC-SHT 904A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 0,75 CC-SHT 1CS4051 CC-SHT 906C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4050 CC-SHT 906B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4049 CC-SHT 906A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 7,5 CC-SHT 1CS4054 CC-SHT 1004C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 11 CC-SHT 1CS4053 CC-SHT 1004B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 15 CC-SHT 1CS4052 CC-SHT 1004A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 3 CC-SHT 1CS4057 CC-SHT 1006C T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 4 CC-SHT 1CS4056 CC-SHT 1006B T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 5,5 CC-SHT 1CS4055 CC-SHT 1006A T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 4 CC-SHT 1CS4060 CC-SHT 1004C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 5,5 CC-SHT 1CS4059 CC-SHT 1004B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 7,5 CC-SHT 1CS4058 CC-SHT 1004A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,1 CC-SHT 1CS4063 CC-SHT 1006C 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 1,5 CC-SHT 1CS4062 CC-SHT 1006B 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 THREE-PHASE SINGLE F400 2,2 CC-SHT 1CS4061 CC-SHT 1006A 5/10 T F400
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 SPECIAL FEATURES CC-SHT UPON REQUEST LONG CASING +
INSPECTION DOOR
SMOKE
AXIAL FANS		 HIGH EFFICIENCY
DUCTED AXIAL FAN		 SPECIAL FEATURES CC-SHT UPON REQUEST GALVANIZED CASING

Kapcsolódó termékek
