Dynair MICROBOX Centralized single flow extract ventilation

Construction

  • Casing in galvanised steel sheet inside lined with acoustic insulation.
  • Backward blade impeller for high efficiency and low noise level.
  • Wall/ceiling fixing kit for an easy and quick installation (Maico Italia patent).
  • Easy access to motor and impeller for inspection.
  • Supplied with plastic sealing rings for the spigots.
  • Compliance with EN 60335-2-80, B.T. 2014/35/UE, EMC 2014/30/UE
  • IPX4

Accessories

  • RLS 1 WR Remote control for the manual selection of the ventilation level (min / Intermediate / high). Suitable for Microbox EC.
  • RLS 3V Remote control for the manual selection of the ventilation level (min / Intermediate / high) and On/Off switch. Suitable for Microvox 3V AC.

CATALOGUE

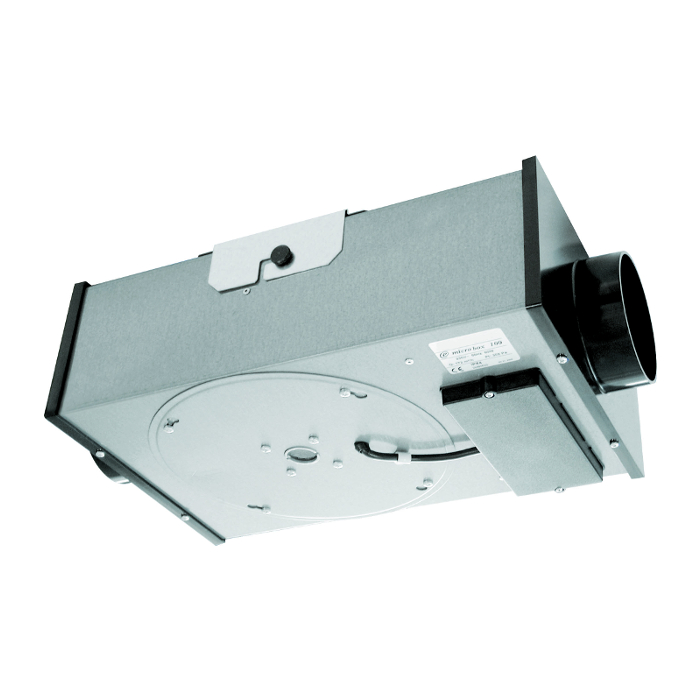

MICROBOX is a super-slim centrifugal box suitable for a whole-house extract ventilation.

Modular, extremely compact and super-silent, it is ideal for installation in void ceilings.
Suitable for conveying air up to a temperature of 50°C.

Operation:  the stale air is exhausted from humid rooms (kitchen, bathroom, toilets, laundry). The fresh air is supplied by specific air entrance points.

Models:

Microbox 3V

  • AC motor
  • 3 speed version with continuous running at the minimum speed
  • Speed are controllable through the accessory RLS 3V (available as accessory)

Microbox Control

  • AC motor
  • Speed controllable through the new VSD controller in a range from 100 to 246 m3/h.
  • The VSD is supplied with the fan.

Microbox EC

  • EC motor
  • Speed controllable through the accessory RLS 1WR (available as accessory) in a range from 125 to 310 m3/h.
