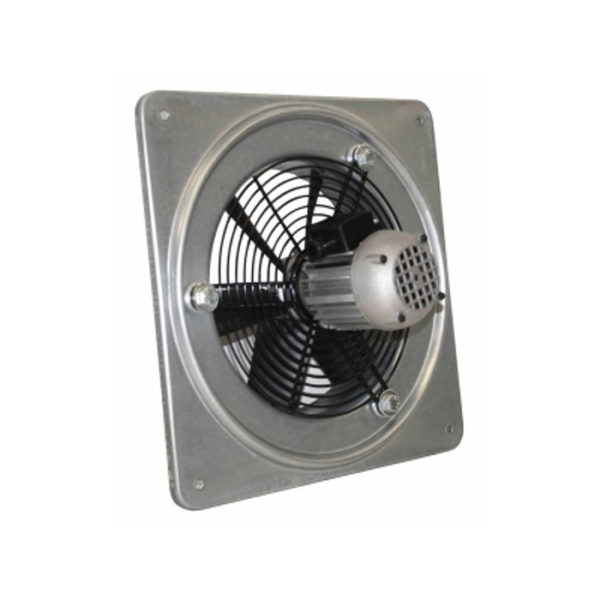

Dynair QCM Plate mounted axial fans

Construction

  • Supporting frame in drawn galvanized steel sheet, with radius inlet cone. Models 63 and 71 supporting frame in drawn steel sheet, with radius inlet cone, epoxy coated
  • Axial impeller with aerofoil profi leblades in polymer or die-cast aluminium and die-cast aluminium hub. Variable pitch angle in still position with setting means. Balanced according to ISO 1940
  • Execution 5 (impeller directly coupled to motor shaft)
  • Air flow from motor to impeller
  • Inlet protection guard and motor support in steel rod, epoxy coated. According to EN ISO 12499 norm.

Accessories

  • Gravity shutter (S)
  • Spacer manufactured in epoxy painted steel sheet (D)
  • Impeller side protection guard manufactured according to UNI ISO 12499 rules and protected against atmospheric agents (R)

CATALOGUE

ACCESSORIES

The QCM series are axial fans suitable for application on wall or panel in residential, commercial and industrial building.

The series consists of 10 models with impeller diameter from 200 to 700 mm (1). The use of the QCM series is foreseen for clean air in the temperature range -15°C 50°C.
The optimized inlet cone reduces noise level and increases the efficiency.

Upon request:

  • Impeller with airfoil blades in die-cast aluminium alloy
  • Airflow from impeller to motor.

Versions:

  • ATEX version according to Directives 94/9/CE and 2014/34/UE.



(1)
QCM 200 – 250 – 314 – 350 – 400 – 508 – 568: these models are not affected by the ErP Directive 2009/125/CE and by the UE Regulation 327/2011.
QCM 312 – 450 – 504/6 – 564/6 – 630 – 710 : these models are available for extra-UE markets only.

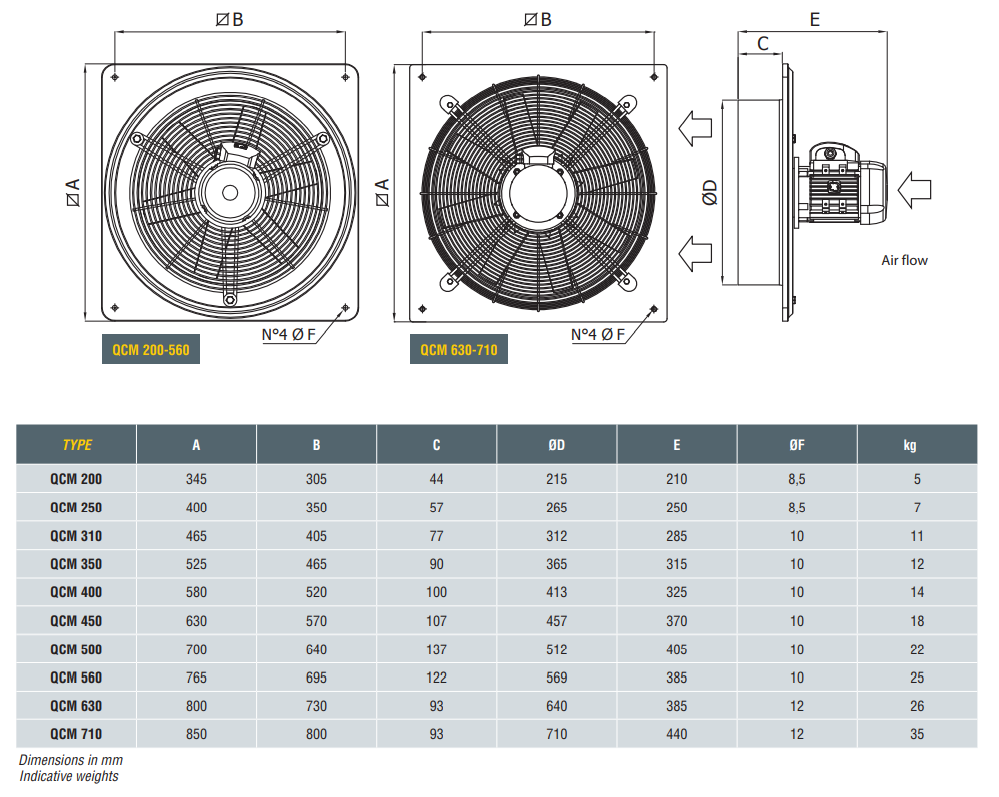

TYPE GENERAL
DESCRIPTION
ADDITIONAL INFORMATION SPEED VARIOUS kW GROUP CODE ARTICLE
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,09 QCM 1QC2080 QCM 202 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,09 QCM 1QC2082 QCM 204 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,12 QCM 1QC2610 QCM 252 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,09 QCM 1QC2612 QCM 254 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,25 QCM 1QC3230 QCM 312 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,09 QCM 1QC3232 QCM 314 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,12 QCM 1QC3620 QCM 354 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE 0,12 QCM 1QC4200 QCM 404 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,37 QCM 1QC4614 QCM 454 M
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,05 QCM 1QC2081 QCM 202 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,03 QCM 1QC2083 QCM 204 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,12 QCM 1QC2611 QCM 252 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,03 QCM 1QC2613 QCM 254 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,25 QCM 1QC3231 QCM 312 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,09 QCM 1QC3233 QCM 314 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,12 QCM 1QC3621 QCM 354 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,12 QCM 1QC4201 QCM 404 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,37 QCM 1QC4615 QCM  454 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,55 QCM 1QC5015 QCM 504 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,18 QCM 1QC5018 QCM 506 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,12 QCM 1QC5016 QCM 508 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,75 QCM 1QC5702 QCM 564 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,25 QCM 1QC5703 QCM 566 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE 0,12 QCM 1QC5704 QCM 568 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 1,1 QCM 1QC6304 QCM 634 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,37 QCM 1QC6305 QCM 636 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,25 QCM 1QC6306 QCM 638 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 2,2 QCM 1QC7102 QCM 714 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,75 QCM 1QC7103 QCM 716 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
THREE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 0,37 QCM 1QC7104 QCM 718 T
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SPECIAL FEATURES QCM UPON REQUEST ALUMINUM IMPELLER
(NOT AVAILABLE FOR SIZES : 200, 250)
PLATE MOUNTED AXIAL FANS
& ACCESSORIES
SQUARE PLATE MOUNTED
AXIAL FAN
SPECIAL FEATURES QCM UPON REQUEST REVERSE AIRFLOW :
FROM IMPELLER TO MOTOR
(NOT AVAILABLE FOR SIZES : 200, 250)
