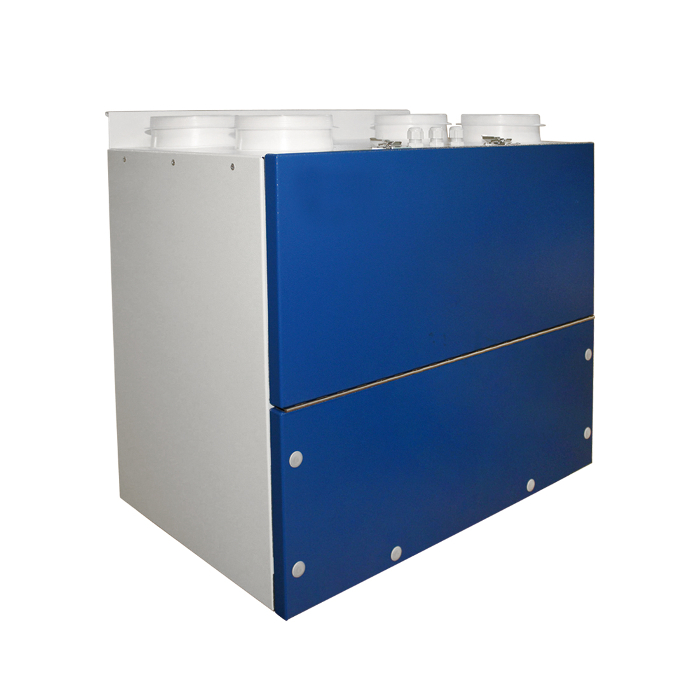

Dynair REC 280-320 Centralized HRU vertical Installation

Construction

  • Casing made in galvanized steel sheet with epoxy finish
  • Internal panels in PPE for a perfect thermal and acoustic insulation
  • Integrated filter system class G4.

Accessories

  • RLS 3V – 3 speed remote controller and On/Off switch suitable for REC 280
  • Remote Touch Panel controller with coloured screen available as accessory for REC 320 (or included with REC 320 TC)
  • The panel allows to manually or automatically manage (through the weekly programming) the following functions:
    • The Speed/ventilation level regulation
    • The ventilation modality (by-pass function, freecooling, only extraction, only immission)
    • The threshold humidity level over which the unit increases its speed
    • The post-ventilation function (Timer function, adjustable from 0 to 30 minutes) to delay the switching of the unit at the minimum speed)
    • The Sleep modality that allow to have the unit running silently at low speed during the night

CATALOGUE

REC 280 – 320 are centralized heat recovery units with thermal efficiency up to 93%.

Ideal for houses up to 10 rooms. Installation configuration: 5 intake points and 5 extract points.
They are suitable for vertical installation and for ø 125 mm ducting system.
All units are provided with integrated by-pass.

Models:

REC 280
Provided with external rotor motor and forward blade impeller 2 speed running: continuous running at the minimum speed, maximum speed is activated through remote control.
AC motor. Airflow up to 280 m3/h.

REC 320
Provided with brushless motor for an optimal combination between high performance, silence and low energy consumption.
Energy class A.
Supplied with RLS 1WR controller for the selection of the ventilation level (low – intermediate – high).

REC 320 TC
Supplied with a remote Panel Touch controller with coloured screen.
The panel allows to manually or automatically manage (through the weekly programming) the following functions:

  • The Speed/ventilation level regulation
  • The ventilation modality (by-pass function, freecooling, only extraction, only immission)
  • The threshold humidity level over which the unit increases its speed
  • The post-ventilation function (Timer function, adjustable from 0 to 30 minutes) to delay the switching of the unit at the minimum speed)
  • The Sleep modality that allow to have the unit running silently at low speed during the night
