Dynair S-Cube Backward curved centrifugal box fans

Construction

  • Frame in extruded aluminium profiles and removable double skin panels in galvanized steel sheet; all this brings to an excellent aesthetic impact
  • Acoustic lining of the panels in self-extinguishing techno-polymer
  • Backward curved impeller directly coupled to the motor
  • B3 Motor fitted using suitable reinforced support seat
  • Support brackets with holes suitable for lifting and easy installation
  • Motor equipment:
    • Asynchronous three-phase motor or single-phase motor manufactured according to international standards IEC 60034, IEC 60072, EMC 2014/30/UE, LVD 2014/35/UE, CE marked, IP 55, class F
    • All suitable to S1 service (continuous working at constant load)

Accessories

  • Weatherproof cover
  • Rainproof discharge outlet with guard
  • Anti-vibration supports
  • Floor support feet
  • Square/Round outlet connector

CATALOGUE

ACCESSORIES

The fans of the S-CUBE series are designed for direct or ducted ventilation in any residential, commercial and industrial buildings application.

Designed for easy installation, their main characteristics are high efficiency and low noise level, thanks to the backward curved impeller and to the acoustic construction with double skin and acoustically lined panels.
Suitable for conveying clean or slightly dusty air with temperature range from -15°C to 50°C in continuous service.

Upon request:

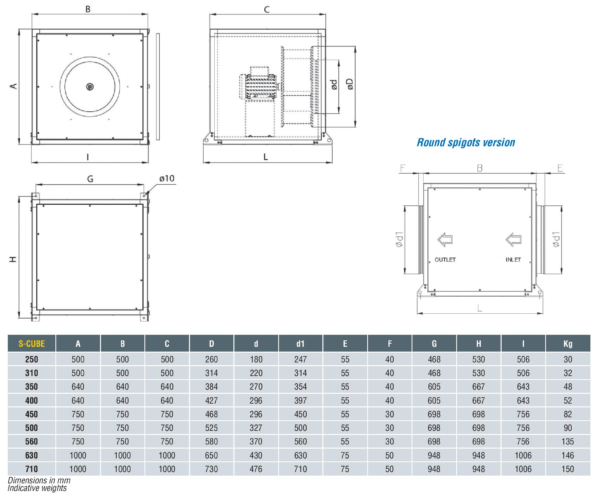

  • circular inlet and outlet

Versions:

  • S-CUBE KAT Version for industrial kitchen (temperature up to 180°C in continuous)
TYPE GENERAL
DESCRIPTION
ADDITIONAL INFORMATION SPEED VARIOUS kW GROUP CODE ARTICLE
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,09 S-CUBE 1SC2502 S-CUBE 254 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,12 S-CUBE 1SC3102 S-CUBE 314 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,25 S-CUBE 1SC3502 S-CUBE 354 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,55 S-CUBE 1SC4002 S-CUBE 404 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,75 S-CUBE 1SC4504 S-CUBE 454 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 1,1 S-CUBE 1SC5007 S-CUBE 504 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 1,5 S-CUBE 1SC5605 S-CUBE 564 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 3 S-CUBE 1SC6305 S-CUBE 634 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,09 S-CUBE 1SC2500 S-CUBE 254 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,12 S-CUBE 1SC3100 S-CUBE 314 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,25 S-CUBE 1SC3500 S-CUBE 354 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,55 S-CUBE 1SC4000 S-CUBE 404 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,75 S-CUBE 1SC4500 S-CUBE 454 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,37 S-CUBE 1SC4502 S-CUBE 456 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 1,1 S-CUBE 1SC5000 S-CUBE 504 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,37 S-CUBE 1SC5002 S-CUBE 506 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,55 S-CUBE 1SC5603 S-CUBE 566 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 1,1 S-CUBE 1SC6300 S-CUBE 636 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 2,2 S-CUBE 1SC7001 S-CUBE 716 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,09 S-CUBE 1SC2503 S-CUBE BT 254 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,12 S-CUBE 1SC3103 S-CUBE BT 314 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,25 S-CUBE 1SC3503 S-CUBE BT 354 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,55 S-CUBE 1SC4003 S-CUBE BT 404 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE 0,75 S-CUBE 1SC4505 S-CUBE BT 454 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 1,1 S-CUBE UPON REQUEST S-CUBE BT 504 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 1,5 S-CUBE UPON REQUEST S-CUBE BT 564 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS SINGLE-PHASE SINGLE FOR EXTRA-UE MARKET ONLY 3 S-CUBE UPON REQUEST S-CUBE BT 634 M
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,09 S-CUBE 1SC2501 S-CUBE BT 254 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,12 S-CUBE 1SC3101 S-CUBE BT 314 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,25 S-CUBE 1SC3501 S-CUBE BT 354 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,55 S-CUBE 1SC4001 S-CUBE BT 404 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,75 S-CUBE 1SC4501 S-CUBE BT 454 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,37 S-CUBE 1SC4503 S-CUBE BT 456 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 1,1 S-CUBE 1SC5001 S-CUBE BT 504 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,37 S-CUBE 1SC5003 S-CUBE BT 506 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 0,55 S-CUBE 1SC5604 S-CUBE BT 566 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
BACKWARD CURVED CENTRIFUGAL BOX FANS THREE-PHASE SINGLE 1,1 S-CUBE 1SC6301 S-CUBE BT 636 T
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
S-CUBE
RAIN COVER
FOR :
S-CUBE & S-CUBE BT
SIZES 25-31
S-CUBE 5TE0080 Rain cover for:
S-CUBE 25-31
S-CUBE BT 25-31
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
S-CUBE
RAIN COVER
FOR :
S-CUBE & S-CUBE BT
SIZES 35-40
S-CUBE 5TE0081 RAin cover for:
S-CUBE 35-40
S-CUBE BT 35-40
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
S-CUBE
RAIN COVER
FOR :
S-CUBE & S-CUBE BT
SIZES 45-50
S-CUBE 5TE0082 Rain cover for:
S-CUBE 45-50
S-CUBE BT 45-50
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
S-CUBE
RAIN COVER
FOR :
S-CUBE & S-CUBE BT
SIZES 56-63
S-CUBE 5TE0083 Rain Cover for:
S-CUBE 56-63
S-CUBE BT 56-63
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
BOXED DIRECT DRIVEN
CENTRIFUGAL FANS
OUTLET WITH GUARD
FOR :
S-CUBE & S-CUBE BT
SIZES 25-31
S-CUBE 5TR0185 OUTLET WITH GUARD FOR:
S-CUBE 25-31
S-CUBE BT 25-31
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
BOXED DIRECT DRIVEN
CENTRIFUGAL FANS
OUTLET WITH GUARD
FOR :
S-CUBE & S-CUBE BT
SIZES 35-40
S-CUBE 5TR0187 OUTLET WITH GUARD FOR:
S-CUBE 35-40
S-CUBE BT 35-40
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
BOXED DIRECT DRIVEN
CENTRIFUGAL FANS
OUTLET WITH GUARD
FOR :
S-CUBE & S-CUBE BT
SIZES 45-50
S-CUBE 5TR0188 OUTLET WITH GUARD FOR:
S-CUBE 45-50
S-CUBE BT 45-50
DIRECT DRIVEN
CENTRIFUGAL BOX FANS
& ACCESSORIES
ACCESSORIES FOR :
S-CUBE
BOXED DIRECT DRIVEN
CENTRIFUGAL FANS
OUTLET WITH GUARD
FOR :
S-CUBE & S-CUBE BT
SIZES 56-63
S-CUBE 5TR0183 OUTLET WITH GUARD
FOR:
S-CUBE 56-63
S-CUBE 56-63
